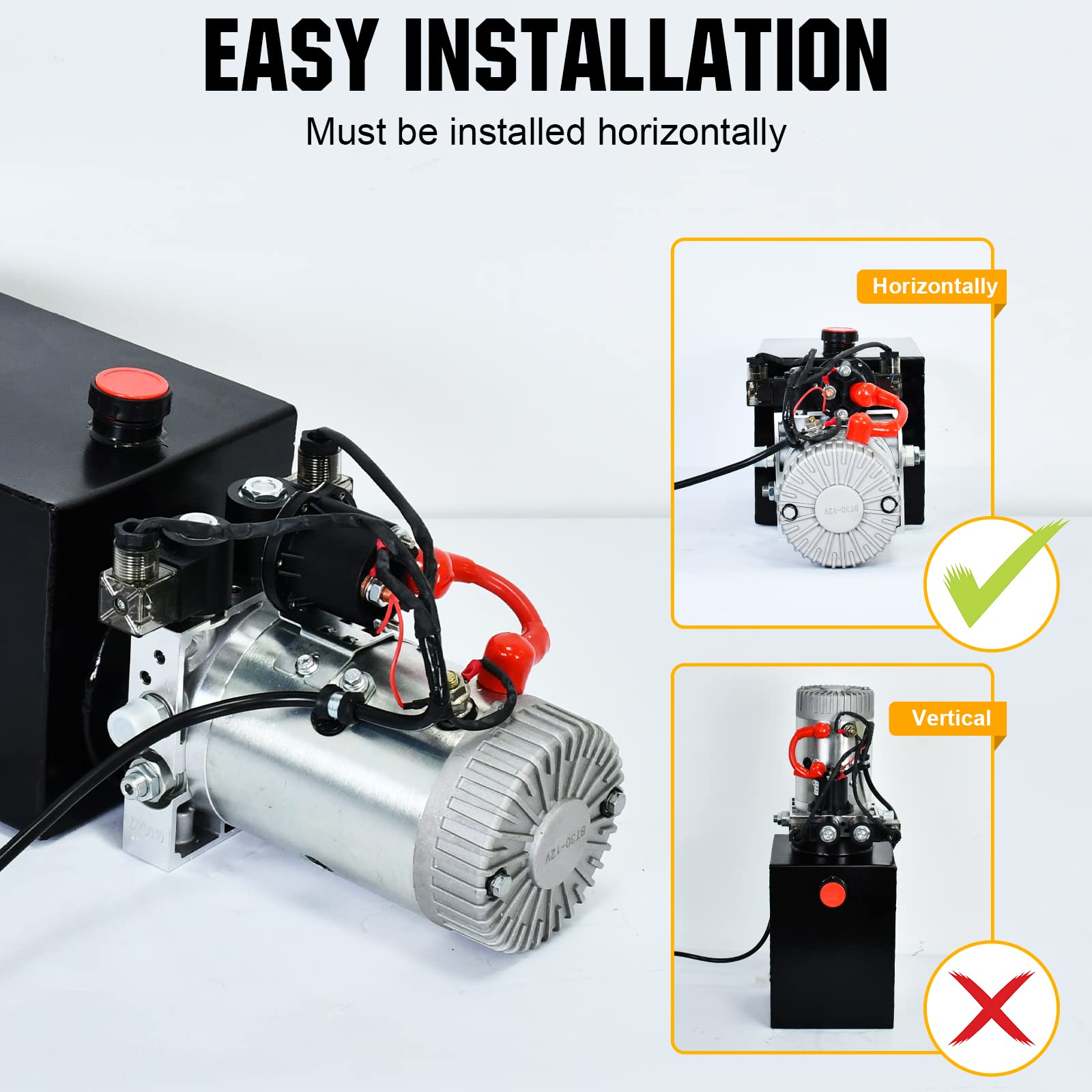

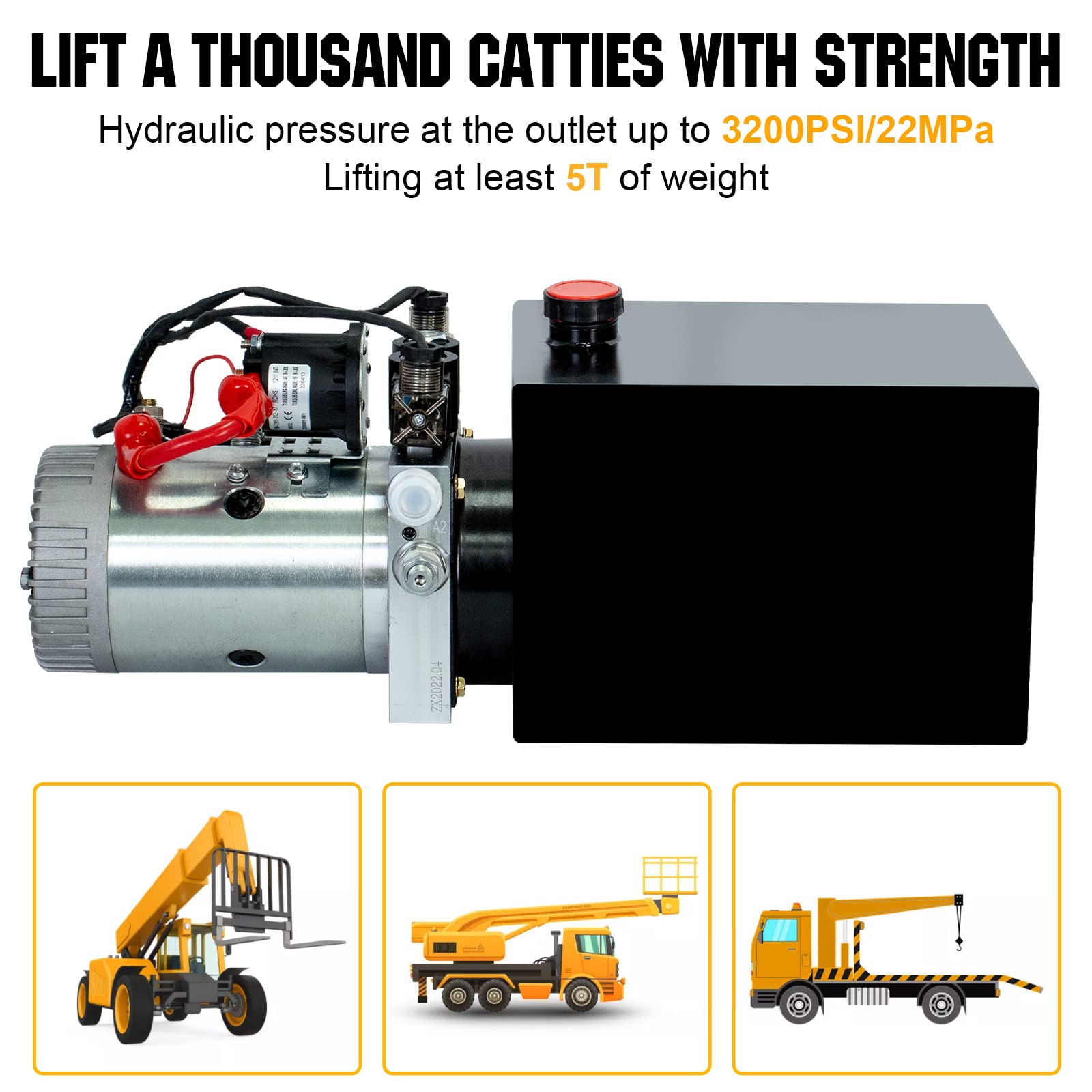

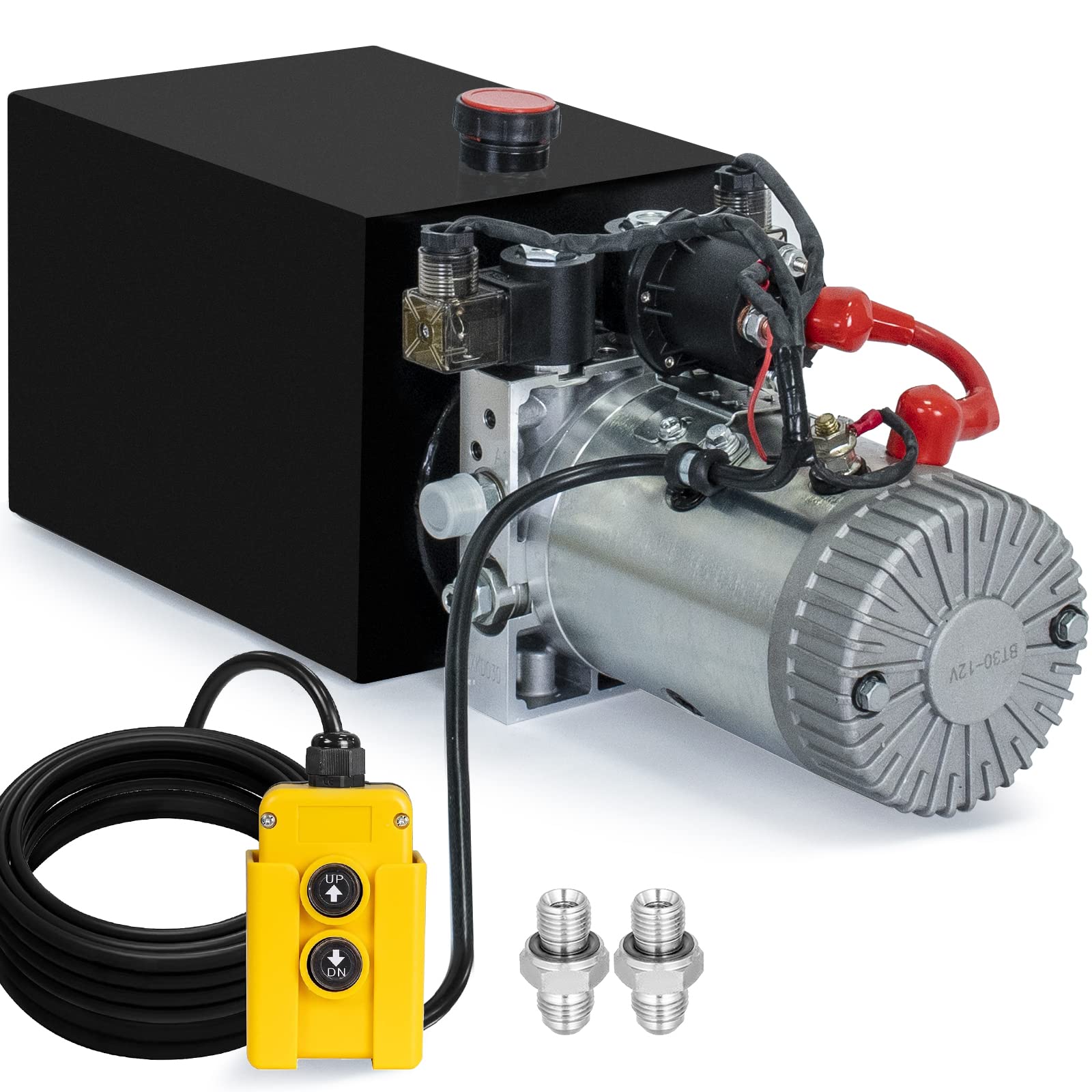

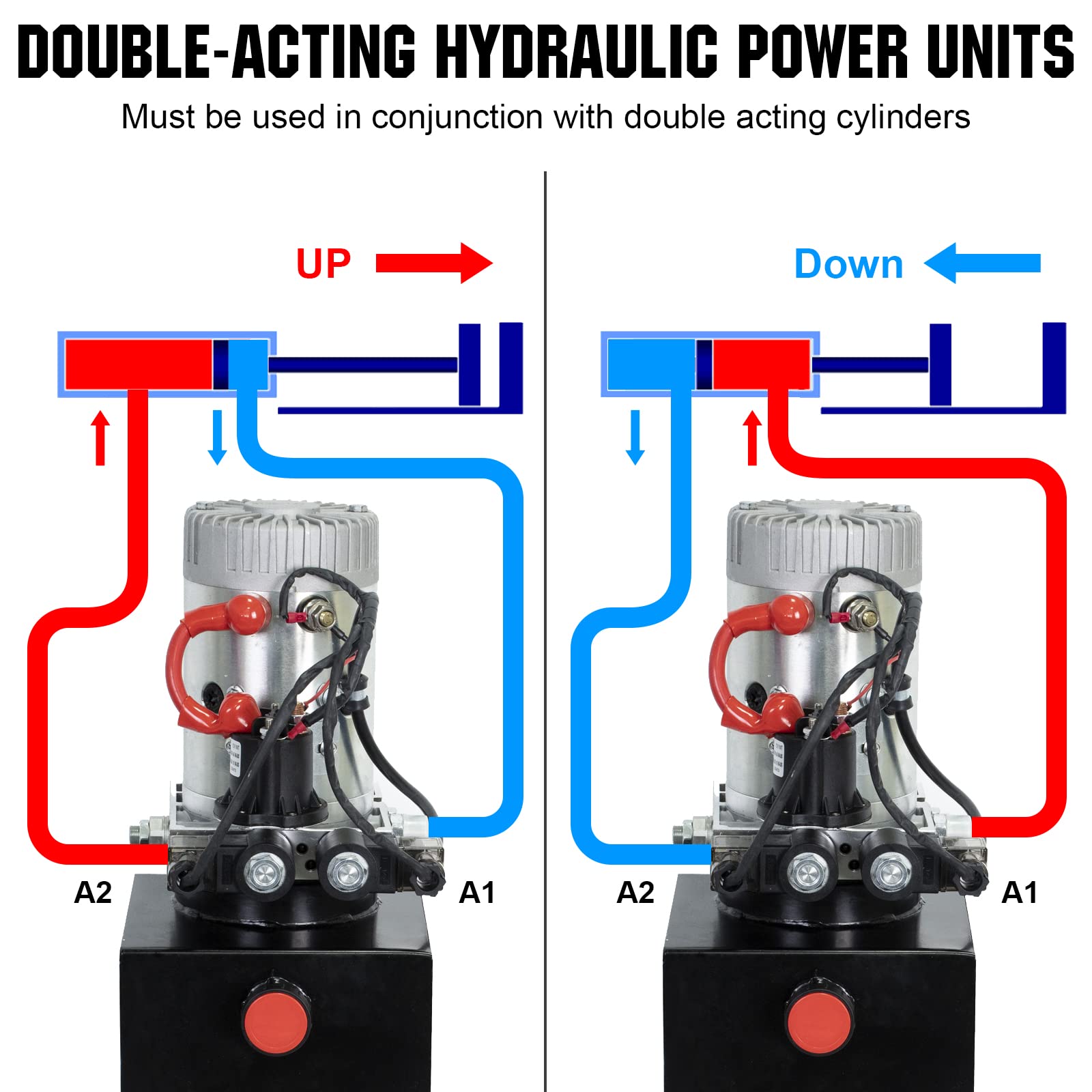

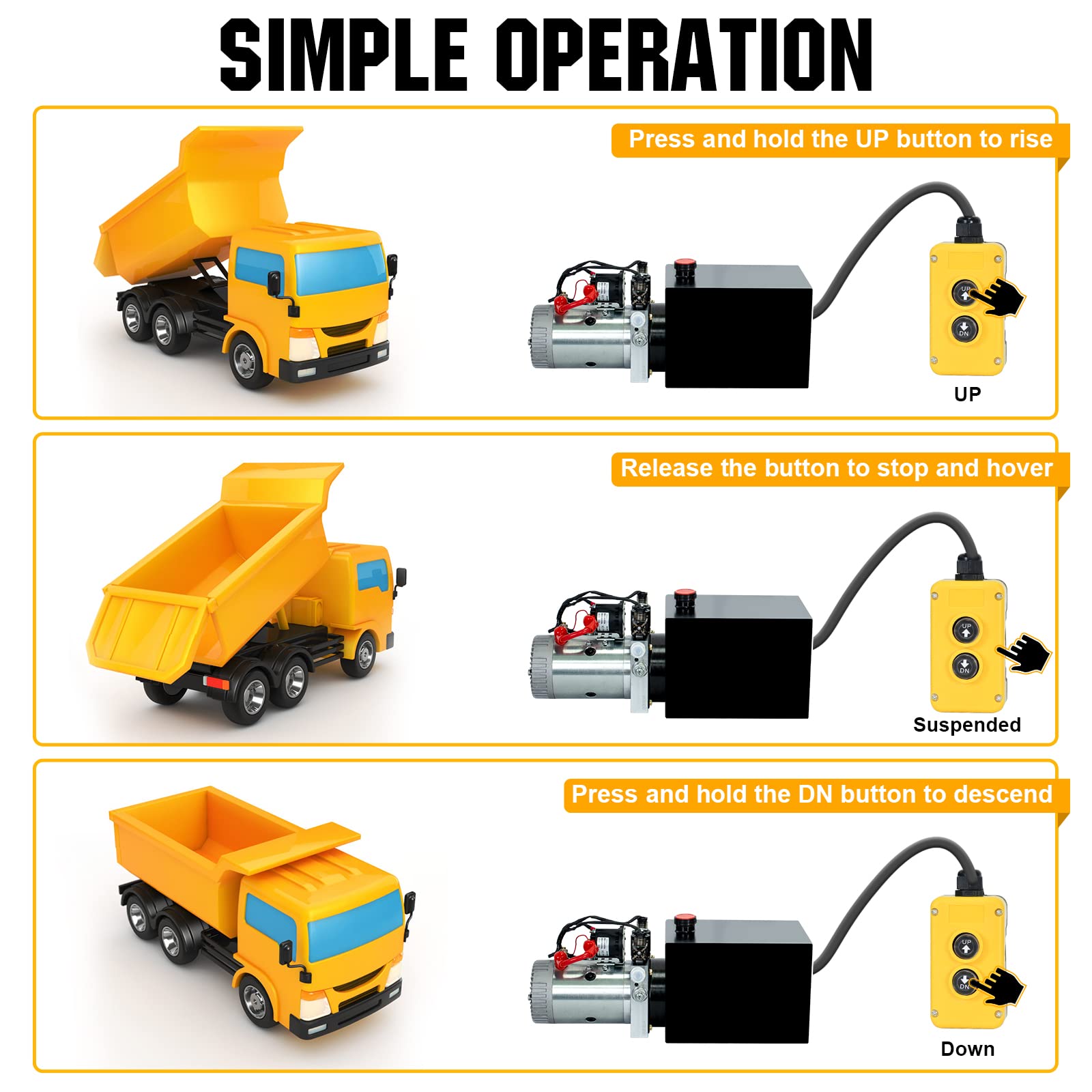

Please Note： 1.Fill the oil tank with suitable hydraulic oil. ATF, OD18, or other clean hydraulic oil with a viscosity of 150-300 SUS at 38℃ (100℃) is acceptabe. 2. The hydraulic oil to be filled into the reservoir should be filtered and the filter precision should be no less than 25μm. Package Include: 1pc 12V Double Acting Hydraulic Pump 2pc Additional SAE#6 Connectors 1pc Dump Trailer Remote Control Switch(15FT) 1pc English Manual 10 Quart Double Acting Hydraulic Pump 10 Quart Metal Reservoir & Double Acting & 12V DC & 2 Additional SAE#6 Connectors Technical Parameters: *Item Size: 22.1"*7.1"*7.1" (LxWxH) *Oil Tank Size: 13"*7.1"*7.1" (10 Quart/10 L) *Voltage: DC 12V *Motor Power: 1.6KW *A1 and A2 Oil Port Pressure: 3200PSI / 22MPa *Acting: Double-acting *Oil Port Model: (9/16")SAE#6 Port *Installation Method: Horizontal Mount *Reservoir Material: Metal Easy to Use This hydraulic power unit can be used directly with the controller (included) after connecting your cylinder with the oil pipe (not included) and connecting the 12V DC power supply (not included) according to the instructions. The interface type of the oil port is (9/16")SAE#6, and the suitable hydraulic oil viscosity range is 22-46mm²/s. Double Acting Power Unit This double-acting hydraulic pump must be used with a double-acting cylinder. The hydraulic pump will have an outlet and return port when controlling your cylinder up and down (for up: A2 for outlet and A1 for return; for down: A2 for return and A1 for outlet), so your cylinder must also have two ports to work. One Force Lifts a Thousand Pounds The hydraulic pump is equipped with a 12V DC motor (rated at 1.6KW) and a 10 quart/10 liter oil tank. The maximum pressure at the outlet can reach 3200PSI/22MPa with your double-acting cylinder can easily lift at least 5 tons of weight. Wide Application Dump Trailer Electric Forklift Lifting Platform Crane truck 4 Quart Double 6 Quart Double 8 Quart Double 10 Quart Double 15 Quart Double Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 706 4.2 out of 5 stars 706 4.2 out of 5 stars 706 4.2 out of 5 stars 706 4.2 out of 5 stars 706 Price $239.99$239.99 $254.99$254.99 $250.76$250.76 $279.99$279.99 $299.99$299.99 Pressure 22MPA 22MPA 22MPA 22MPA 22MPA Reservoir Capacity 4 Quart 6 Quart 8 Quart 10 Quart 15 Quart Traffic 1.1ml/r 1.1ml/r 1.1ml/r 1.1ml/r 1.1ml/r Rated Power 1.6KW 1.6KW 1.6KW 1.6KW 1.6KW Rotating Speed 2850r/min 2850r/min 2850r/min 2850r/min 2850r/min
